Setup TP-LINK EB210 Pro to pair with Mesh

Guide to pair via APP (TPLINK Aginet APP)

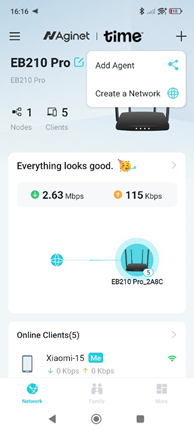

STEP 1:  Put the New TPLINK Mesh Devices side by side to TP-LINK Router. From your Aginet APP, tap on the + symbol to add Agent.

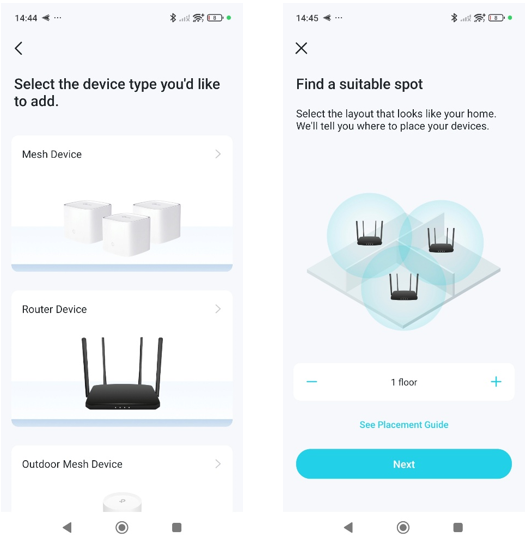

STEP 2:  Select Router Device and Suitable Spot

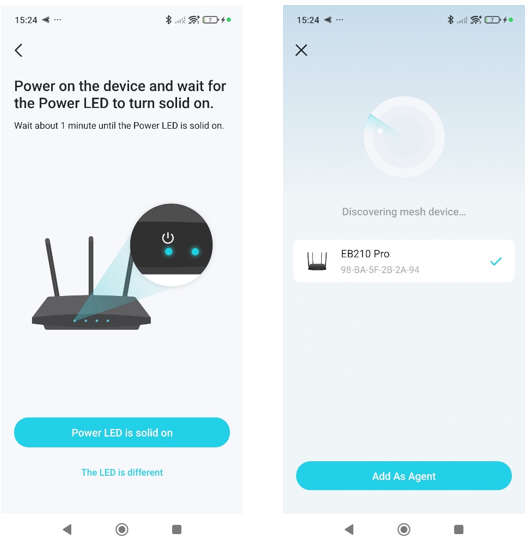

STEP 3:  Select "Power LED is Solid On" to confirm and start scanning. It will show "EB210 Pro Mesh Devices found". Select "Add As Agent".

STEP 4:  Select Mesh Devices Location

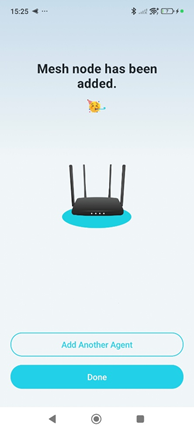

STEP 5:  Mesh Devices added successful. You may relocate the Mesh Node to any suitable Location.

Guide to pair via Physical WPS Button

STEP 1: Put the Router and Mesh Devices Side by Side

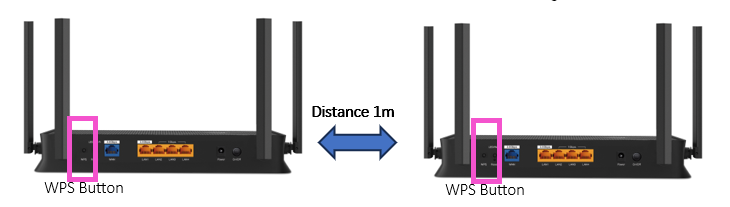

STEP 2: Press WPS Button (one time Press) on Router and Mesh Devices simultaneously.

STEP 3: Wait until Internet LED on Mesh Devices appear steady white, then consider Mesh added successful.

STEP 4: Power off and relocate the Mesh Devices to the suitable location.

Guide to pair via Web Browser

STEP 1:  Open a web browser and type http://192.168.0.1 in the Address Bar

STEP 2: Log in to your router’s configuration page using admin as the default username

<Click here for the guide. Scroll down to "Guide to set up via the Web Browser">

STEP 3: Go to Basic and Network Map. Add your Mesh Devices under Topology.

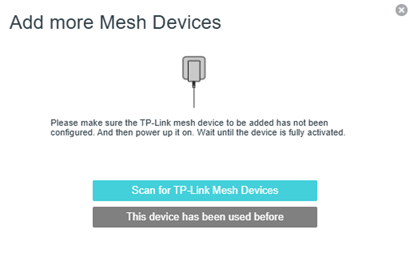

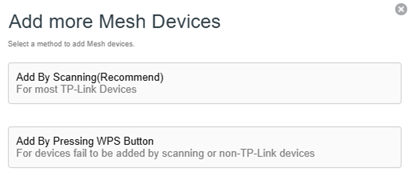

STEP 4: Select Add By Scanning (Recommended)

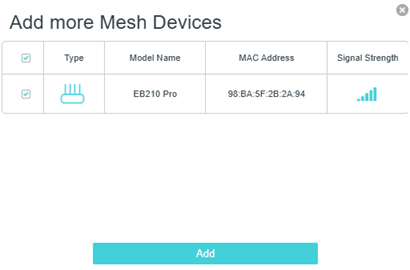

STEP 5: Scan the "Scan for TP-Link Mesh Devices". Once the Mesh Devices found,select Add.

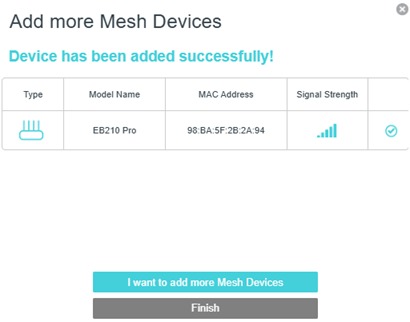

STEP 6: Mesh Devices added successful!

You're ready to use!
