Setup TP-LINK EB210 Pro

Guide to set up via APP (TPLINK Aginet APP)

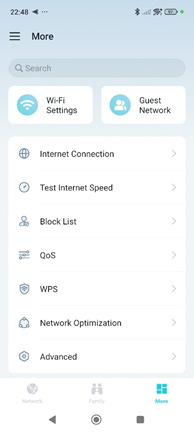

STEP 1:  Tab on More and Internet Connection

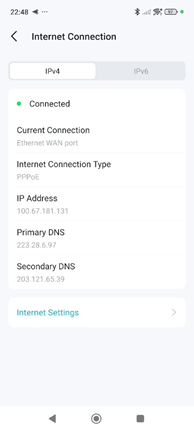

STEP 2:  View the IPV4 connection status or click on Internet Settings

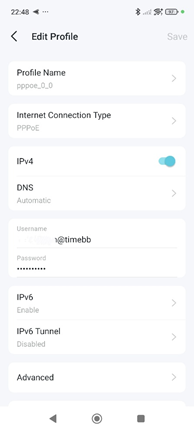

STEP 3:  Change the PPPOE username and password, and Save.

PPPoE can be obtained in SELF CARE. Click HERE for more details

Guide to set up via the Web Browser

Items you will need to get started

a. Laptop

b. LAN cable

c. Access to SELF CARE

STEP 1 :

The RED should remain connected to the MODEM

Connect one end LAN cable to the laptop and another to one of the port in the router GREEN

STEP 2:

Open a web browser and type http://192.168.0.1 in the Address Bar

STEP 3: Enter Username and Password (case sensitive)

Username: admin

Password:

EB210: TIME<last 4 Wireless Key>/ e.g TIME1234

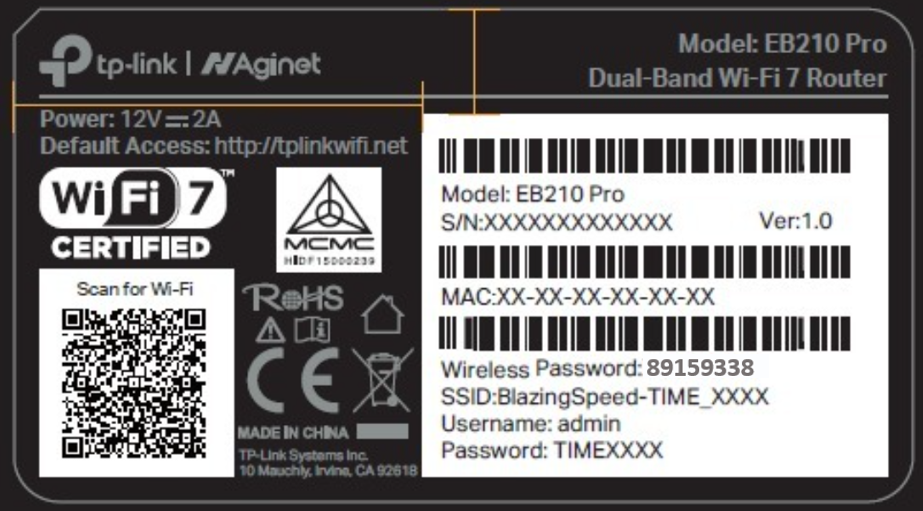

Last 4 digit Wireless Key available underneath the router

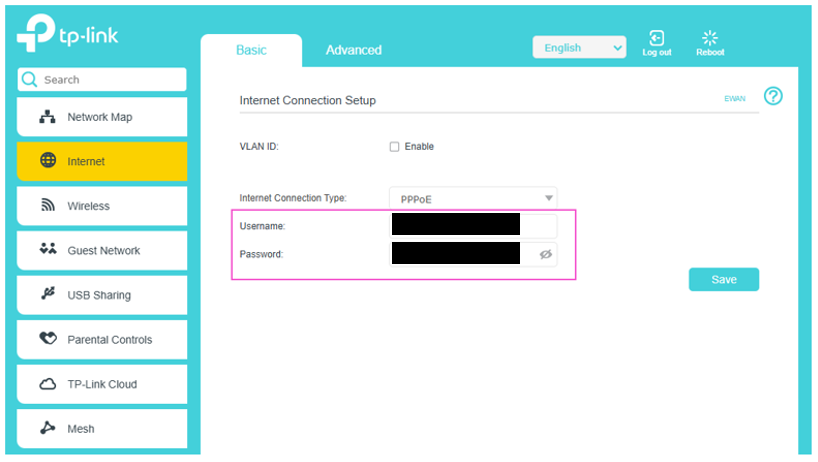

STEP 4: Go to Basic and Internet. Make your changes under Internet Connection Setup.4.Configure your PPPoE Username and password, and Save

PPPoE can be obtained in SELF CARE. Click HERE for more details

Your laptop should have active internet connection now

You can proceed to check or change your WiFi SSID from here if needed.

Enjoy your speed!
